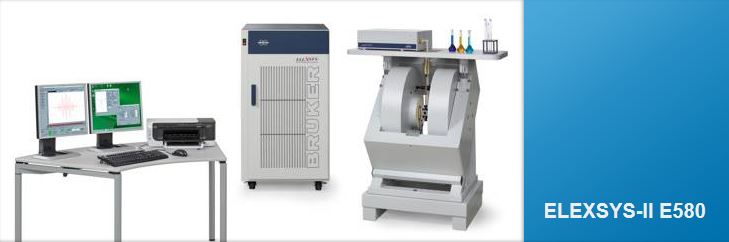

ELEXSYS II E580

FT/CW System

The basis for multifrequency and multiresonance FT-EPR

The E 580 is a highly versatile instrument that allows all pulse experiments of today and is prepared for the challenges of tomorrow.

The next generation, SpecJet-II and PatternJet-II, is now on the market to further enhance speed and precision of Pulse-EPR data acquisition. These new developments, combined with the flexibility, sensitivity and reliability of the FT/CW-EPR bridges and the Flexline resonators, make the ELEXSYS E580 an unsurpassed research instrument for the investigation of paramagnetic species in all disciplines of science.

The E 580 is a highly versatile instrument that allows all pulse experiments of today and is prepared for the challenges of tomorrow.

FT-EPR and Electron Spin Echo techniques as the basic detectors for the EPR spectrum and electron spin relaxation times

ESEEM and 2D-HYSCORE to measure spin density distribution and distances through the hyperfine interaction between electron and nuclear spins

SECSY and EXSY to measure correlations and exchange rates

Pulse-ELDOR and DEER to measure long range distances by electron-electron spin dipolar coupling

Pulse-ENDOR to measure hyperfine interactions and nuclear spin relaxation

Laser triggered experiments to investigate chemical reactions and triplet states
